Hello,
I am selling my Elcon/TCCharger/DigiNow chargers.
I made the two chargers into an extra small 6.6kW unit for easy stowage.
The charge time is around 90mins for a 12.5kWh Zero S! That's more power than the stock 6kW charge tank sold by Zero for 2500+ €.
All cables have plugs, which makes it simpler to store.
It's controlled by a small box that just needs to be plugged in. It's possible to change the charge current and charge-end-voltage using bluetooth, I will give you the code that's running on the two ESP32 microcontrollers and CAN shields.

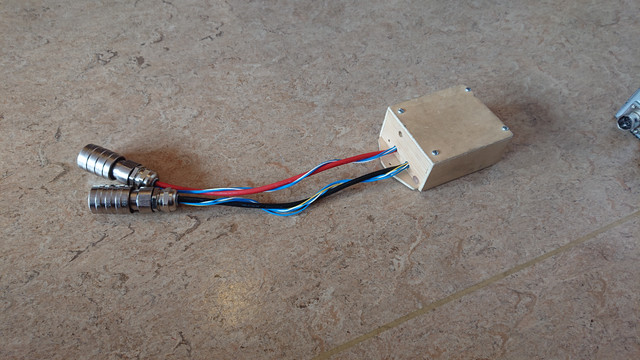

I made a cable that splits the three phase from the station for the two chargers plus the onboard charger. Overall power therefore is about 7500W.
It's all plug and play except for the charge plug.
The white plugs on the first picture is a Mennekes Type 2 and J1772, plus some cables and other plugs, all from some other charger. You must take the plug of your choice and connect it to the splitter cable.
I am using these chargers for a year now. They should work on every Zero bike newer than 2013!:)
If you have any questions, feel free to ask.
Asking 1500€ VB, location Germany, so shipping in Europe is preferred.
Best regards!
DerKrawallkeks
